IMR Series
- Apron Type
- Shot Blasting Machine
- Shot Peening Machine
Model：MR-200 / IMR-600 / IMR-1200
Apron-type Shot Blast Machines most suitable for rust removal from cast products and descaling of forged products.
Main Features of IMR Series
- Rugged and compact design
- Excellent maintainability
- Efficient blast cleaning by twin shot blasting devices (IMR-1200); reduces operating time significantly and improves economy, from single-blaster version of the same model.
Video
※Please note that audio is included. Be careful when playing.
Specifications of IMR Series
| IMR-200 | IMR-600 | IMR-1200 | ||
|---|---|---|---|---|
| Processing Capacity | Capacity Patch (L) | 90 | 280 | 480 |
| Maximum Processable Volume (kg) | 300 | 560 | 900 | |
| Maximum Individual Weight (kg) | 20 | 40 | 40 | |
| Blasting Unit | Number of Units | 1 | 1 | 2 |
| Maximum Blasting Amount (kg/min) | 80 | 180 | 180 × 2 | |
| Motor (kW) | 5.5 × 4P | 11 × 4P | 11 × 4P × 2 | |
| Cabinet | Dimension of Projection Chamber Φ x L (mm) | 600 × 800 | 900 × 1000 | 1000 × 1530 |
| Motor (kW) | 0.4 × 4P | 0.75 × 4P | 1.5 × 4P | |
| Door Opening and Shutting | 0.2 × 4P | 0.4 × 4P | 0.75 × 4P | |
| Packet Loader | 0.4 × 4P | 1.5 × 4P | 3.7 × 4P | |
| Dust Collector Air Flow (㎥/min) | 15 | 20 | 45 - 60 | |
| Total Output Capacity (kW) | 7.7 | 15.8 | 33.55 | |
| Size of Installation Area WxHxL(m) | 1.5 × 3.1 × 3.3 | 1.8 × 3.4 × 3.9 | 2.6 × 5.0 × 4.4 | |
Applications of IMR Series
- Rust removal from cast products
- Descaling of forged and heat-treated products
- Deburring of pressed products
Optional Features provided for IMR Series
Upon request, various kinds of optional mechanisms can be mounted, such as: ・Conveyor Belt to bring out the after-process products to the side of the machine ・Trommel Screen to separate peening shot from burrs (in case burr volume is high)Project Photos

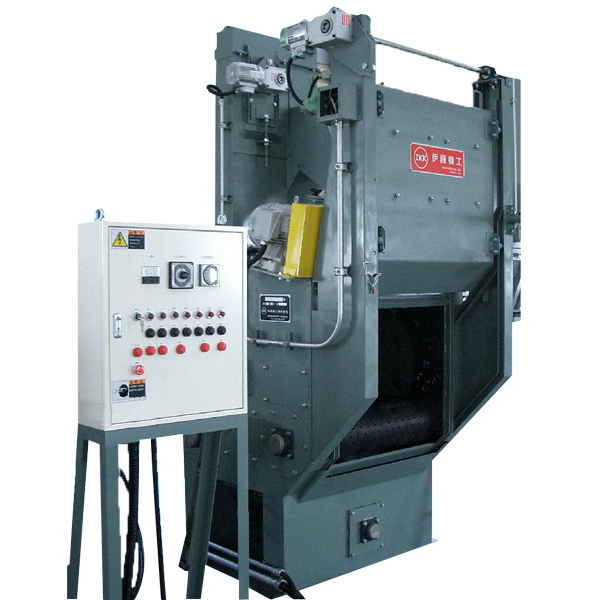

Shot blasting machine IMR series
Shot blasting machine IMR series
