Stainless Steel Beads
- For Blasting
Model：Material: Metal Shape: Spherical Hardness: Medium
Projection material best for blasting and shot peening aluminum/stainless steel made products, molds, small springs, etc.
Main Features of Stainless Steel Beads

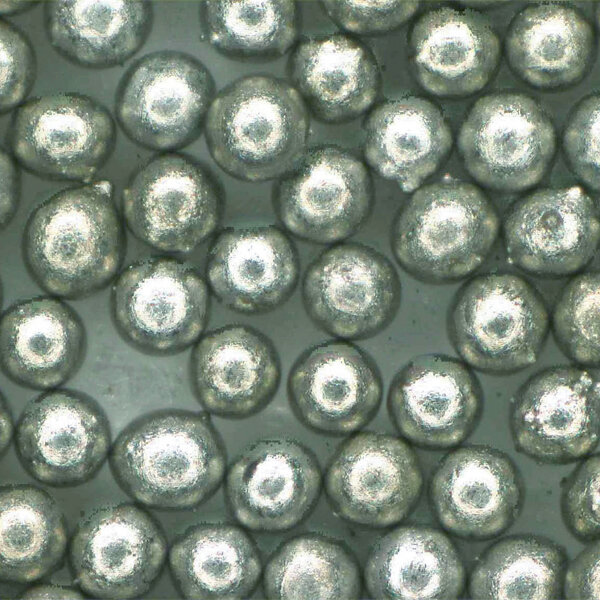

Very fine and spherically-shaped stainless steel particles manufactured by the exclusive Nitrogen Gas Atomizing method.
Specifications of Stainless Steel Beads
| Chemical Composition | C ： 0.25％ Si： 1.20％ Mn： 0.90％ Ni： 9.00％ Cr：19.00％ |
Particle Size | BPS040：500～300μm BPS050：300～150μm BPS080：200～100μm BPS150：150～ 50μm BPS300：70μm or smaller |
|---|---|---|---|
| Hardness | 240～350Hv | Packaging Specification | 20kg paper bag / cardboard box |
Applications of Stainless Steel Beads
Blast Cleaning of aluminum and stainless steel products, molds, small springs and similar.Also applicable as material for thermal spraying (metallikon).
Various data for Stainless Steel Beads
Measurement Results about Stainless Steel Beads

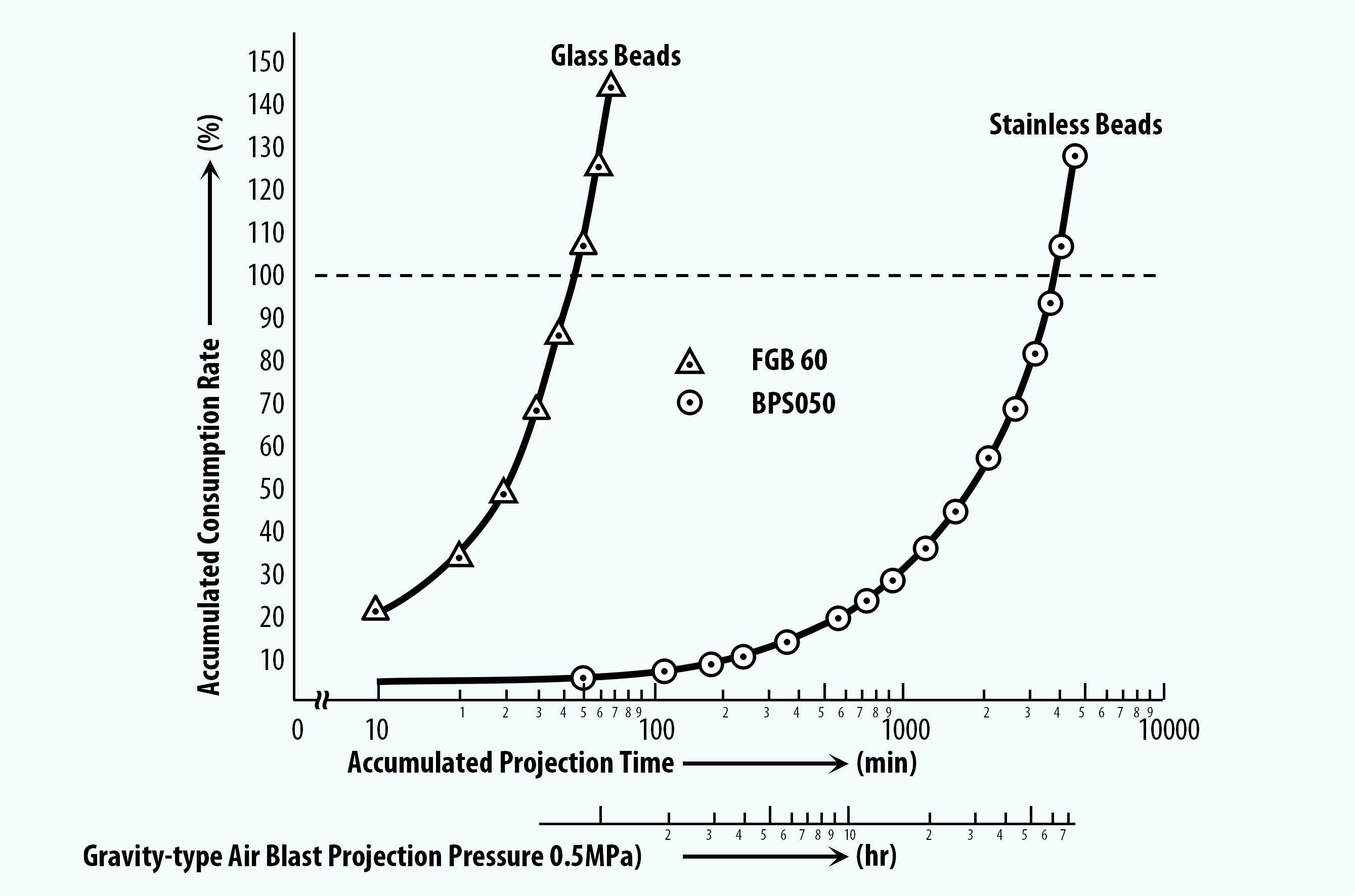

Comparison of Wearout Rate between Glass Beads and Stainless Steel Beads
Stainless Steel Beads have a very long lifetime because they are unbreakable, unlike Glass Beads.
In the example shown in the upper diagram, the lifetime of Stainless Steel Beads is approximately 70 times that of Glass Beads.
Stainless Steel Beads have gained a good reputation for cost reduction as well as eco-friendliness because of their low waste generation.

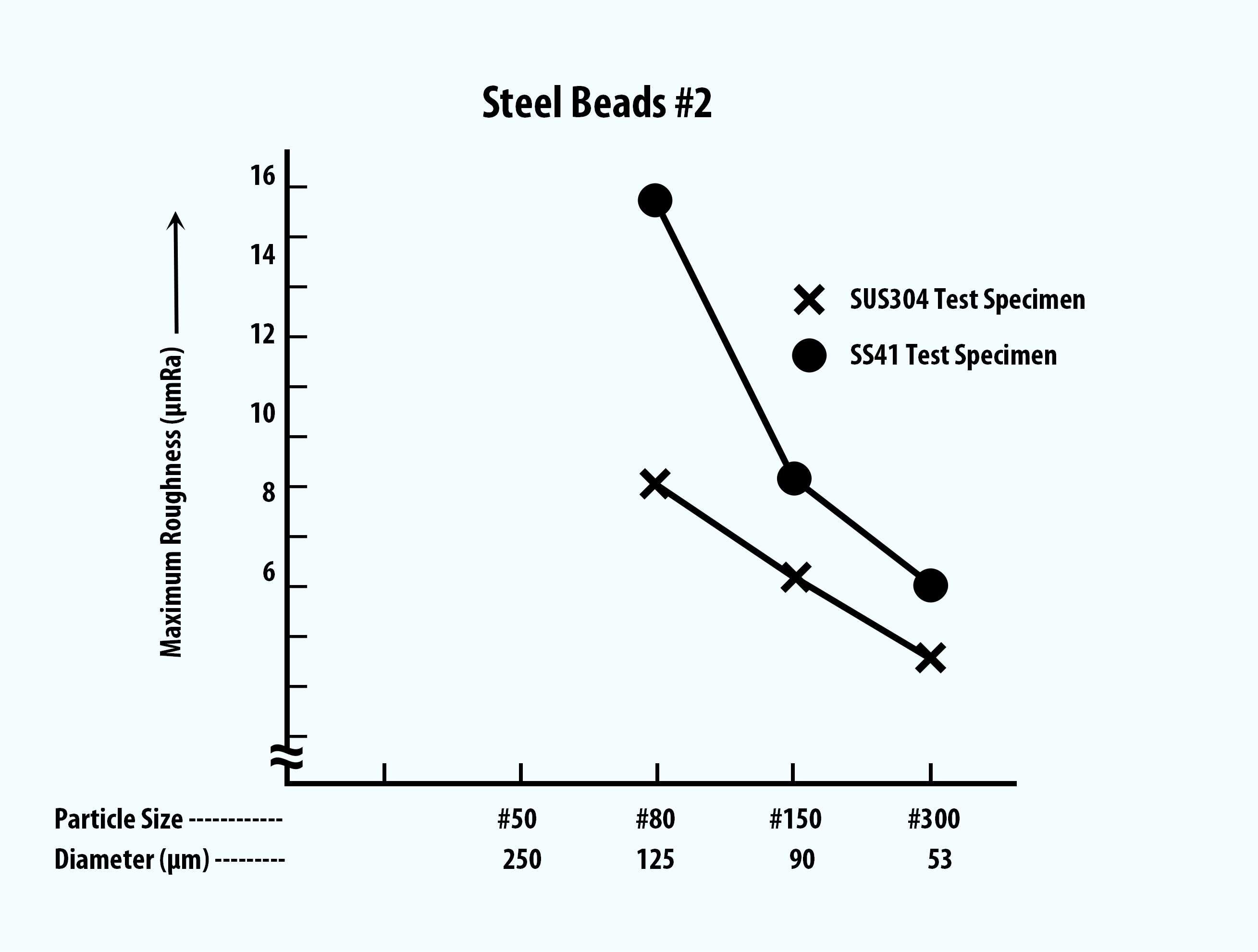

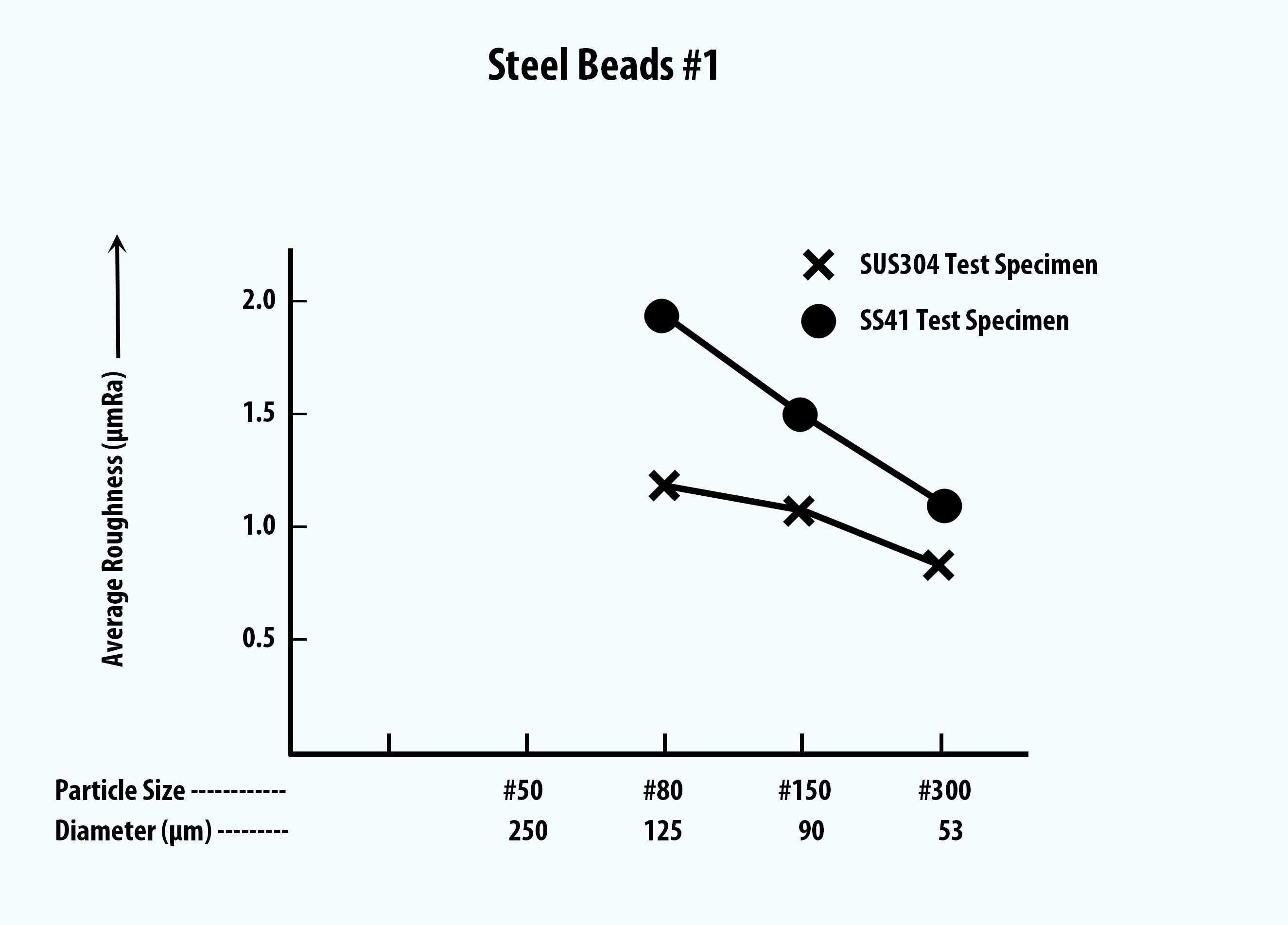

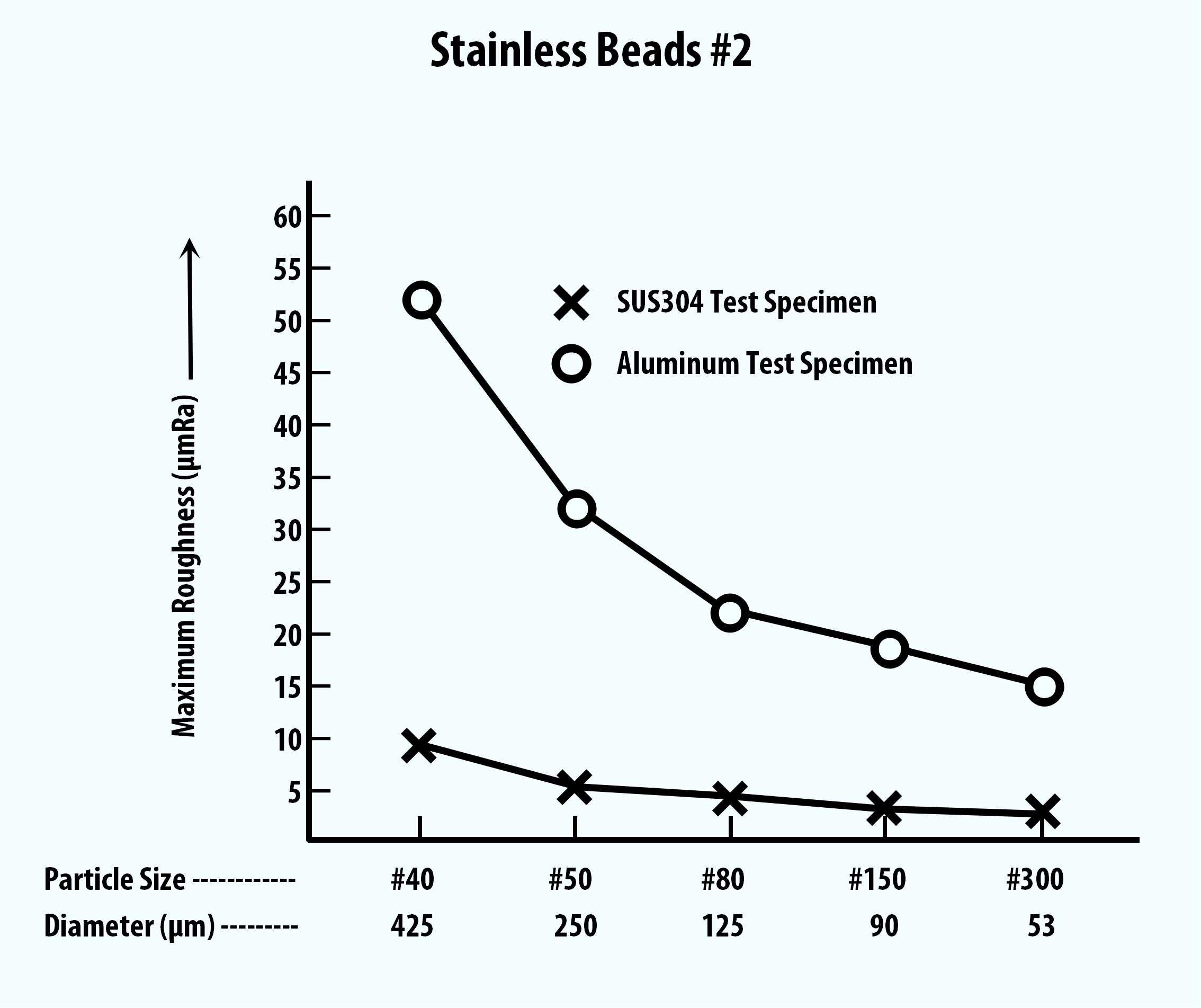

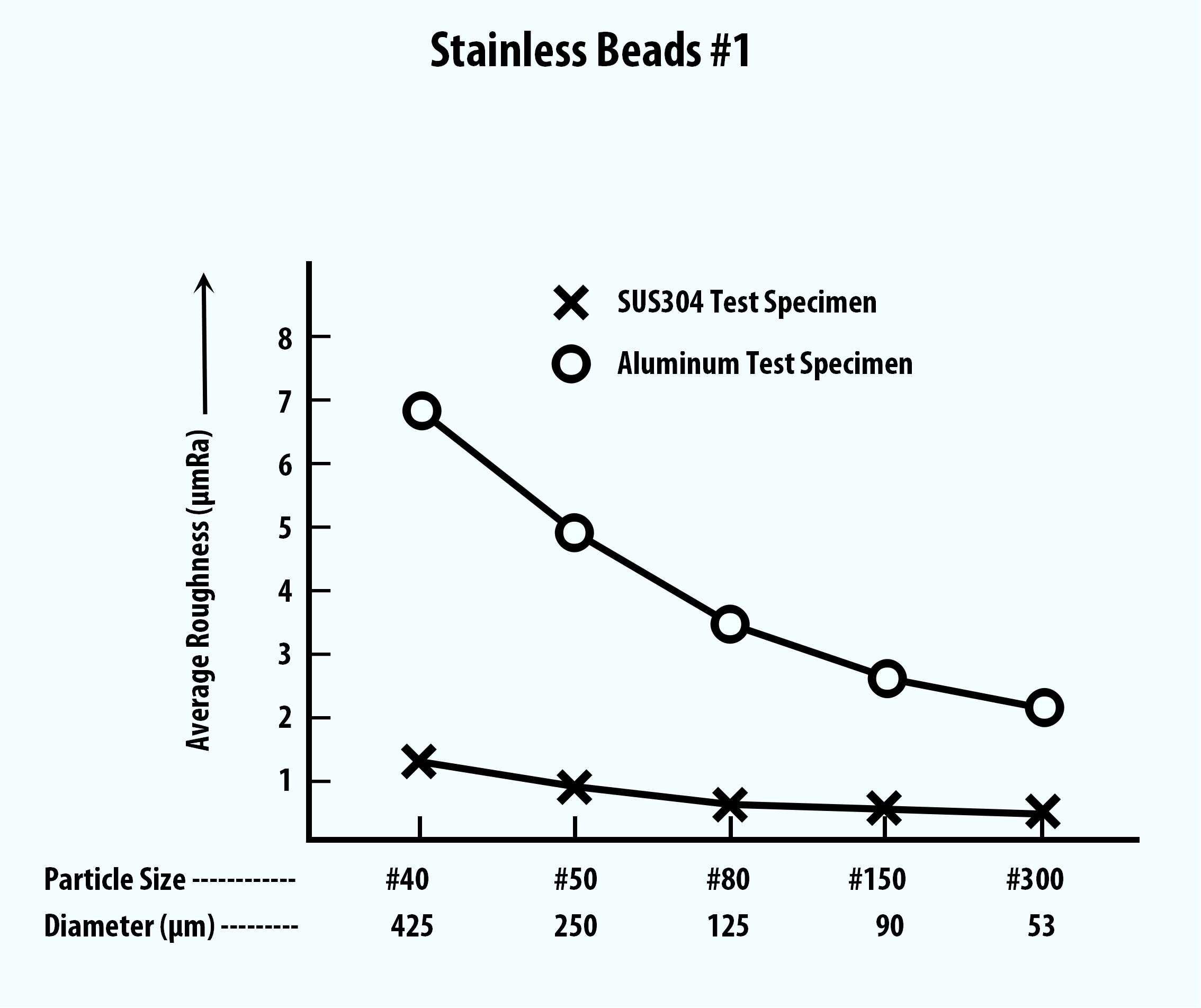

Correlation between Particle Size and Surface Roughness

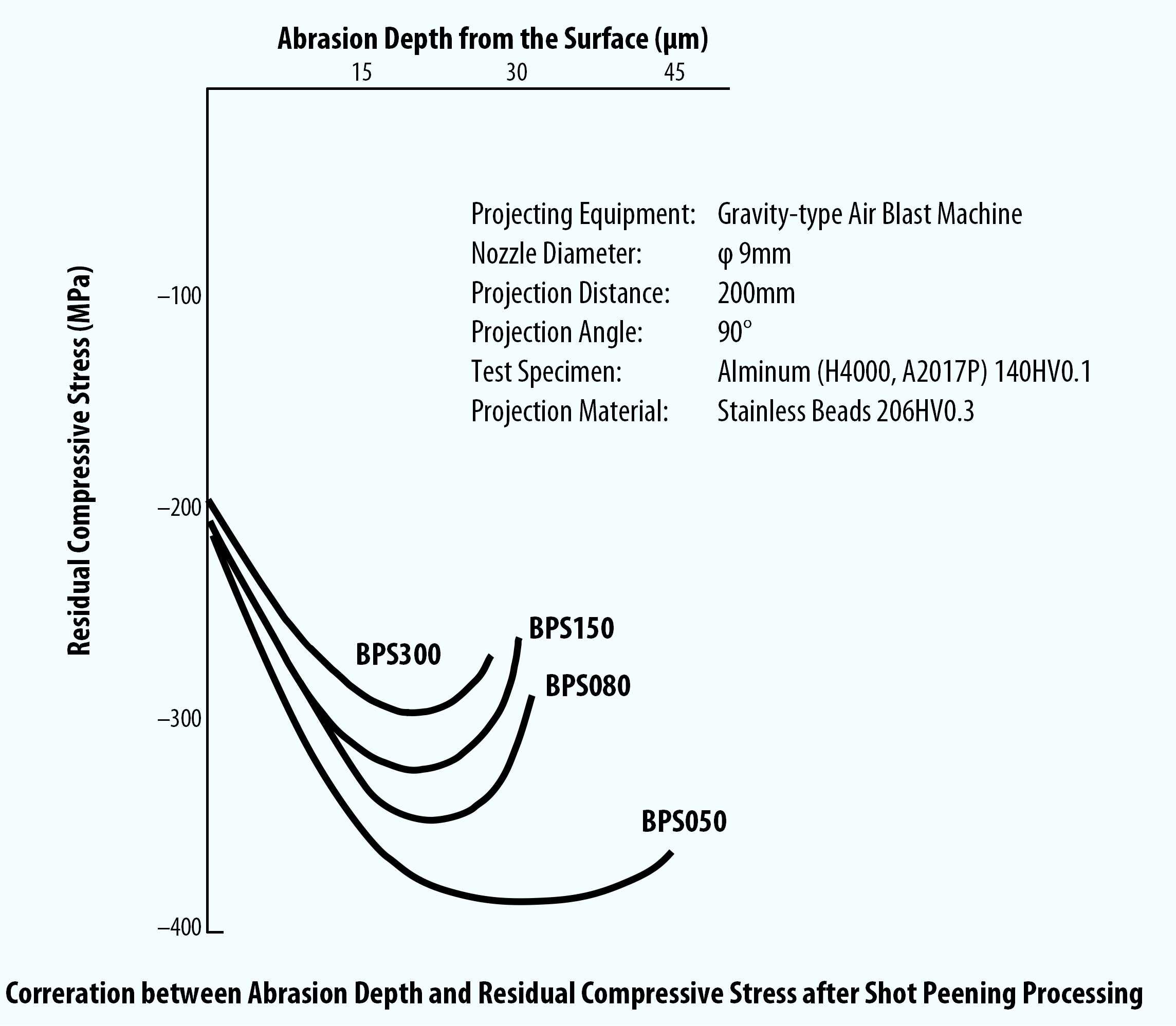

Correlation between Particle Size and Residual Stress
